Introduction in Steel Structrue System
  VERO has a strong R & D and design team, and all the above listed products can be revised or re-designed according to customers requirements.

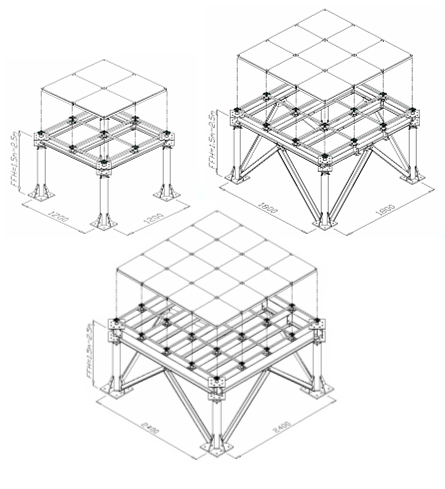

Sketch of Steel Structure System

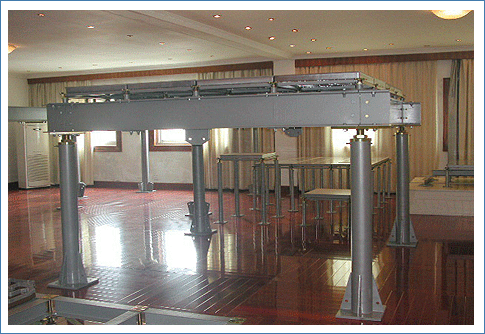

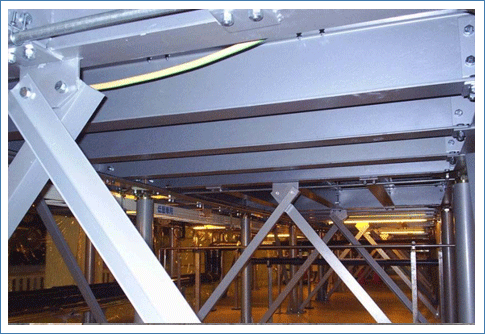

Appearance of Steel Structure System





FFH（Floor High）
Support Column Diameler(φmm)
 Support Column Intervalsr(m)
 Dimensions of (mm)
Nake Panel (mm)
1500~2000mm 100, 140, 160
 1.2x1.2, 1.8x1.8, 2.4x2.4
 H125x250 □300ｘ12ｔ
2000~3000mm
 140+Bracing(1Column）
 2.4x2.4
 H125x250 □300ｘ12ｔ
3000~4000mm
 140+Bracing(2Column）
 2.4x2.4
 H125x250 □300ｘ12ｔ
Surface Treatment
Support column and the naked panel need to be Epoxy Coated, and the Pedestal head to be Zine plated.
Conductivity
 <108Ω

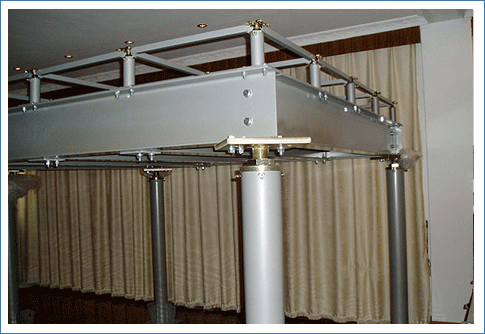

Large Steel Structure System (2.4m×2.4m ×2mH）
